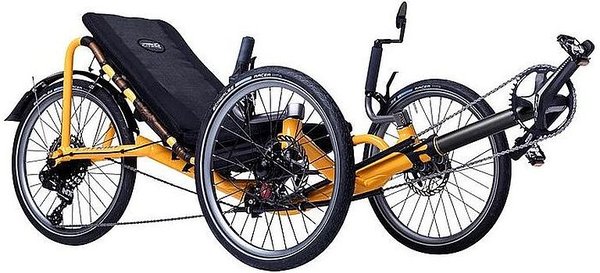

Catrike Eola

Catrike Eola
  • Color: Go Mango
  • Color: Blue Sky
  • Color: Storm Grey
Please select options


Built with a purpose, the Eola features a lightweight space frame, 20-inch wheels and the latest drivetrain technology that creates a nimble and spirited ride. At the heart of the Eola is a SRAM 1 x 11 drivetrain that delivers a full range of gears and flawless performance. Like all Catrikes, it comes with industry-leading features: padded mesh seat, clipless pedals, rear fender, computer sensor mount, locking brake levers, along with a flag and flag holder for increased visibility. With Catrike’s knowledge and experience in manufacturing, the Eola not only has exceptional handling and riding characteristics, it has been engineered for manufacturing and assembly efficiency – assuring value and quality.

Frame & Geometry
- Wheel Base 39in, 991mm
- Wheel Track 29in, 737mm
- Total Width 32.5in, 826mm
- Total Length** 73in, 1854mm
- Seat Angle 41deg
- Weight 33lb, 15Kg
- Seat Height 9.5in, 241mm
- Seat Width 14in, 356mm
- BB Height** 14.5in, 368mm
- Ground Clearance 4.5in, 114mm
- Total Height 23.5in, 597mm
- Turning Circle 16.5ft, 5.03m
- Turning Radius 8.25ft, 2.5m
- Rider Weight Limit 275lb, 125Kg
- Rider X-Seam Range 36/46in, 92/117cm
* weight includes pedals, mirror, flag, computer mount and neck rest if standard on the model.
**varies according to riders height.

- Brakes Avid BB7 Disc Brakes
- Brake Levers Catrike Locking Parking Brake
- Front Derailleur N/A
- Rear Derailleur SRAM NX 11-Speed
- Shifter SRAM NX 11-Speed Grip
- Crankset FSA Omega 165mm
- Bottom Bracket FSAMegaExo
- Chainring 42T
- Chain Guard N/A
- Cassette SRAM 11/42 11-Speed
- Chain FSA
- Idler TerraCycle 15T Sport
- Headsets FSA Zero Stack
- Front Tires 406 Schwalbe Marathon Racer
- Rear Tire 406 Schwalbe Marathon Racer
* All components are subject to change with an equivalent substitute based on availability

Standard Features
- Rear Fender
- Spaceframe
- Flag Mount & Flag
- Mirrycle Rear View Mirror
- Multi Purpose Clipless Pedals
- Computer Sensor Mount
- No Brake Steer
- Self Centering
- Ackermann Steering Compensation
- Structural Front Boom
- Quick-Release Indexing Boom Clamp
- Aluminium Rod Ends
- Low Friction PTFE Flared Chain Tube
- Padded Seat
- 12x142 thru axle
